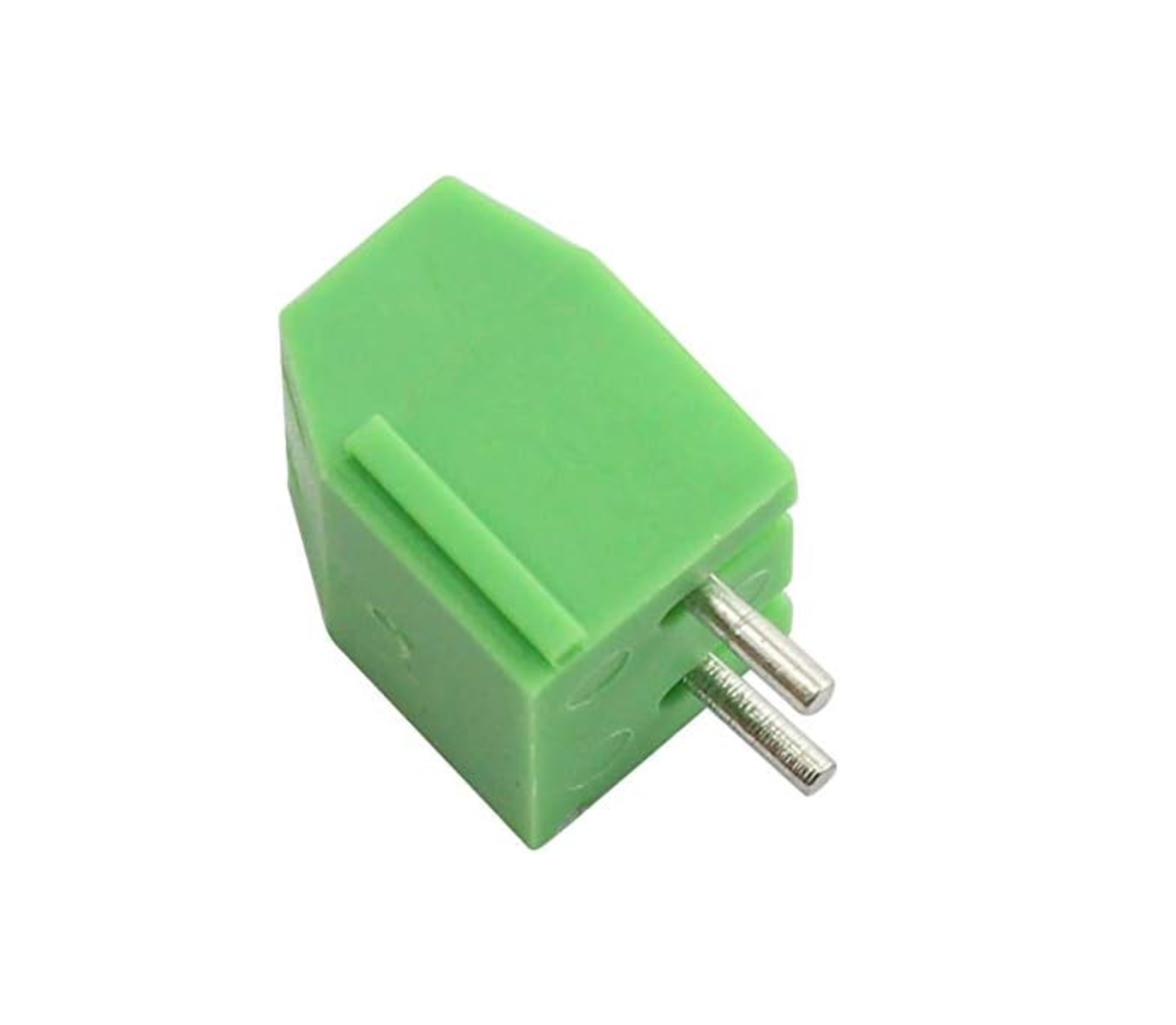

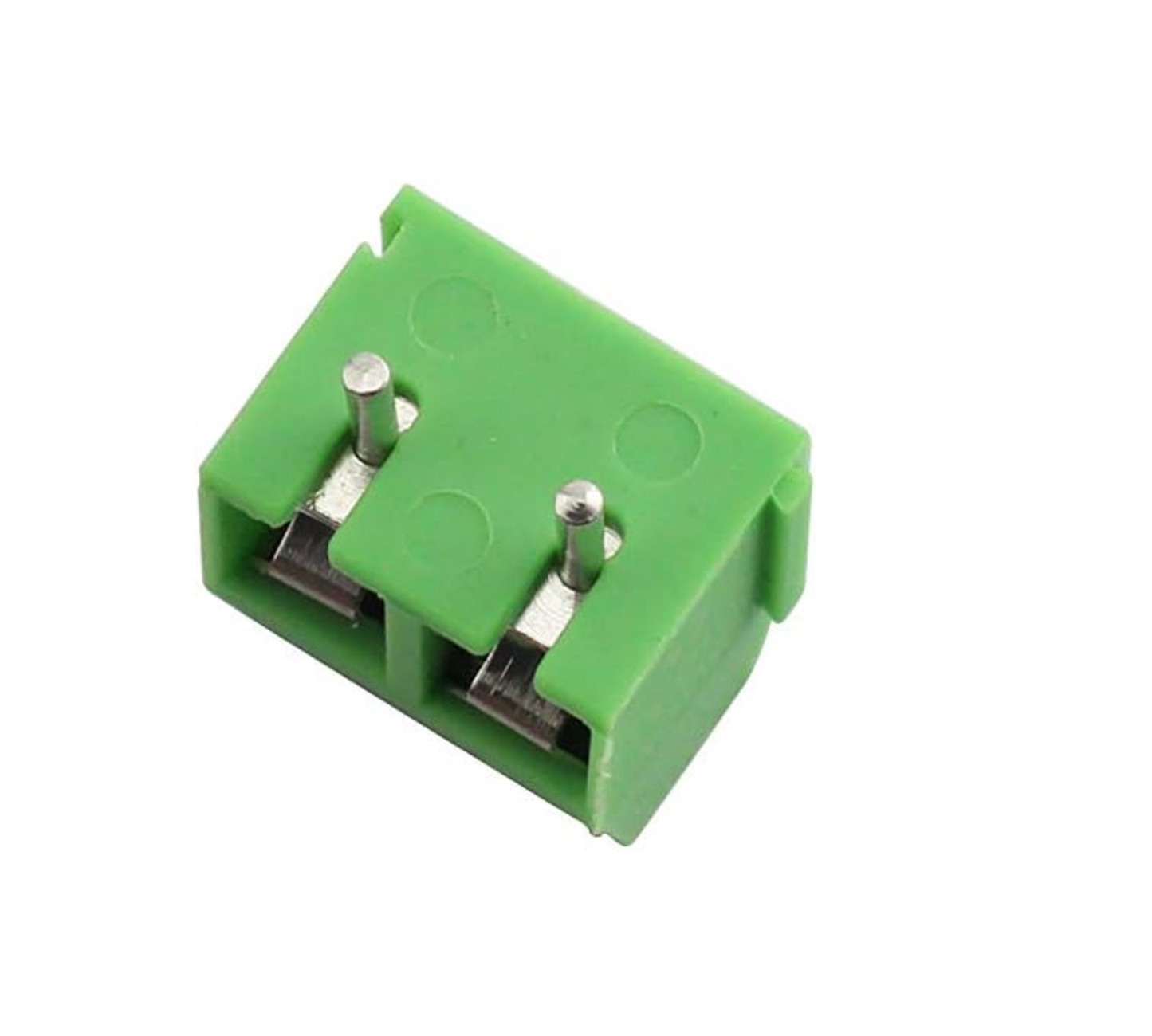

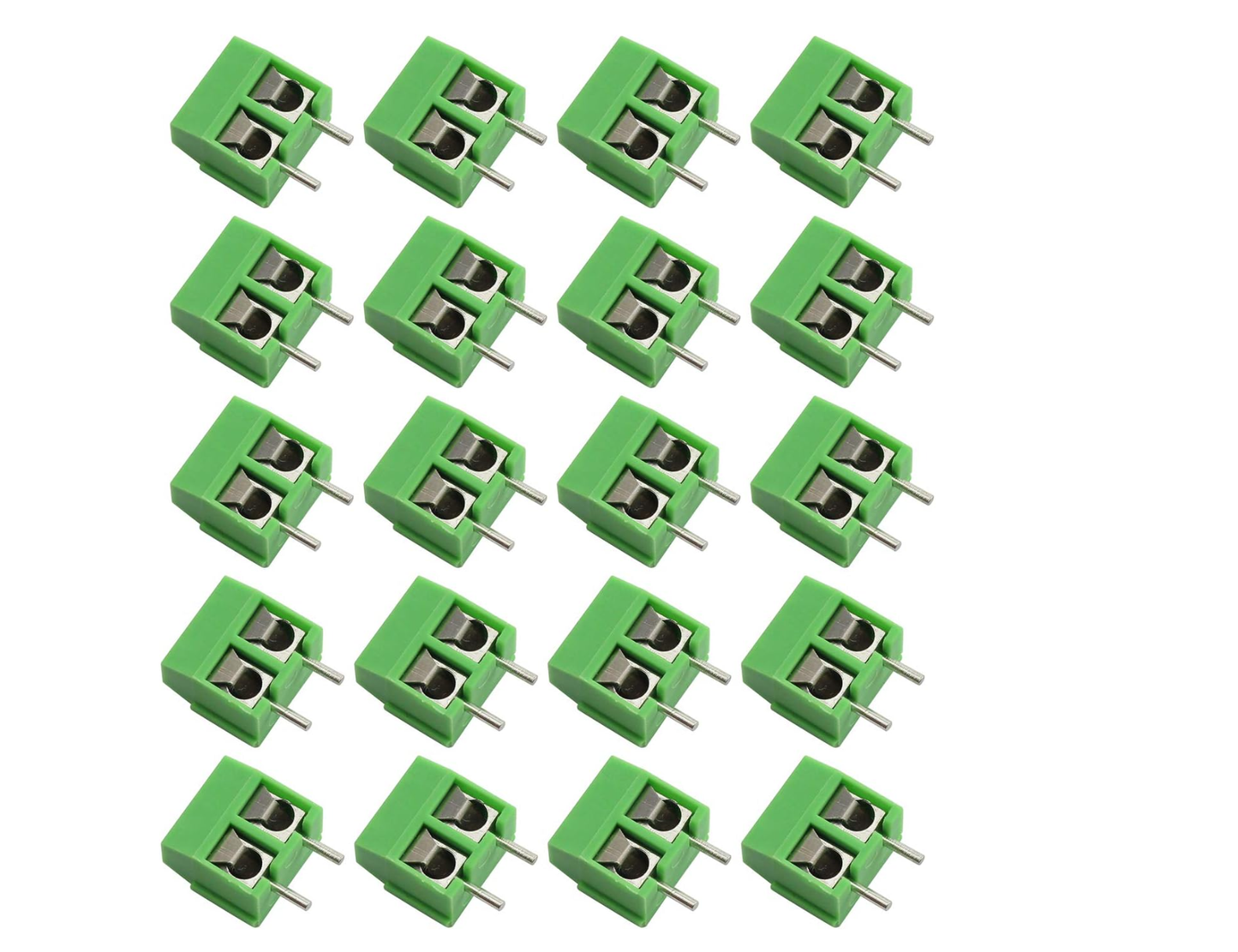

5mm 2 Pin Screw Terminal Block Connector PCB Mount for Arduino 300V 10A

Description:
Product Name: Screw Terminal Block Connector.
MATERIAL
Pitch:5.0mm.
Poles: 2 P.
Screw: M2.5 Steel Zinc plated.
Contact :phosphor bronze.
Wire guard: phosphor bronze.
Pin header: Brass.
Housing: PBT, UL94V-0.
ELECTRICAL
Rated current: 10A.
Rated voltage:300V.
Withstanding voltage: AC1500V/1Min.
Wire range: 22-14 AWG/2.5 square millimeter.
MECHANICAL
Temp range: -30~+120 Degree Centigrade.
MAX Soldering: +250 Celsius for 5sec.
Torque: 0.5 Nm (3.6lb.in).
Strip length: 4.5-5mm.
Size:10x8x10mm/ 0.39x0.31x0.39Inches.
